XRO Brine Concentration System
SHANGCHEN XRO membrane equipment is designed for high-salinity effluent concentration in industrial zero liquid discharge (ZLD) systems. The UF + XRO configuration enhances concentration efficiency, reduces concentrate volume, and minimizes downstream evaporation/crystallization capacity and treatment costs.
The XRO membrane system treats high-salinity effluent with feed TDS of 30,000–80,000 mg/L at 120 bar operating pressure, achieving final concentrate TDS up to 150,000 mg/L. Its intelligent containerized design enables aesthetic installation, automated operation, and smart monitoring with stable and reliable performance.
Product Features
Concentrate TDS Up to 150 g/L
The XRO membrane system surpasses the 110 g/L NaCl concentration limit of conventional ultra-high-pressure membranes, achieving a concentrate equivalent to 150 g/L NaCl at 100 bar. It increases system concentration ratio and reduces concentrate volume.
30–40% Lower Operating Pressure
XRO membrane operates at lower pressure than conventional ultra‑high pressure RO membranes for the same concentrate TDS, reducing operating costs, improving safety, and simplifying maintenance.
20–30% Lower Energy Consumption
XRO membrane equipment reduces energy consumption by 20‑30% compared with conventional SWRO+HPRO, DTRO, and ED, through operating pressure decrease, brine concentration increase, and continuous concentration.
Enhanced Fouling and Clogging Resistance
XRO membrane with diaphragm and process designs, 34mil water inlet width flow channel, and UF water inlet guarantee. Achieves fouling reduction, cleaning efficiency improvement, and operation stability.
Product Model
MSD Seawater Desalination System
Shangchen MSD mobile seawater desalination equipment utilizes reverse osmosis technology for seawater and brackish water desalination. Optional energy recovery, pretreatment devices and other equipments are available. It is an overall modular, containerized, ship-mounted and island-mounted seawater desalination system.
It features easy operation and low maintenance requirements. Users only need to provide power supply and a water source connection to produce fresh water upon startup. With a high level of automation, it enables online monitoring of water quality and flow rate.
With a compact, lightweight design and small footprint, the MSD mobile seawater desalination equipment offers easy installation and high adaptability. It can be deployed in confined spaces such as engine rooms, decks, and ship cabins, as well as in water-scarce islands, offshore platforms, and coastal regions.

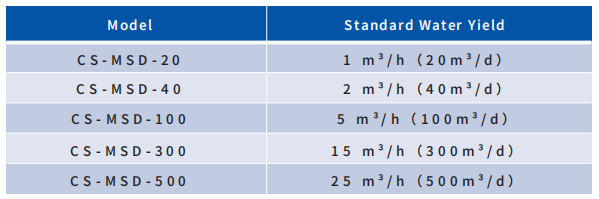

Product Model
